CloudEdge App DocsieGeek Bell J10 Video Doorbell
Quick start guide for the ieGeek Bell J10 wireless video doorbell, covering box contents, charging, Wi-Fi setup, indoor chime pairing, installation, and troubleshooting.
The ieGeek Bell J10 is a wireless, battery-powered video doorbell with an indoor chime, managed through the CloudEdge app (also compatible with the ieGeek Cam app).
Need help? Many issues are solved by changing a single setting. If your doorbell does not work as expected, check the Trouble Shooting section below or browse the Doorbell FAQs.
1. What's in the box?
Please consult the checklist below for all the components.
- Video Doorbell (with Bracket)
- Indoor Chime
- Charging Cable
- Screws & Tools
- User Guide
- Double-sided Tape
2. Meet the doorbell
| # | Component | # | Component |
|---|---|---|---|
| 1 | Lens | 2 | PIR Motion Sensor |
| 3 | Microphone | 4 | Doorbell Button (Power Button) |
| 5 | LED Indicator | 6 | Speaker |
| 7 | Unlock hole | 8 | Unlock Pin |
| 9 | Reset Button | 10 | Charging Port |
| 11 | Charging Indicator | 12 | Micro-SD Card Slot |
| 13 | Doorbell Bracket |
A Li-ion Battery is built in.
When you receive the product, the doorbell and bracket are integrated.

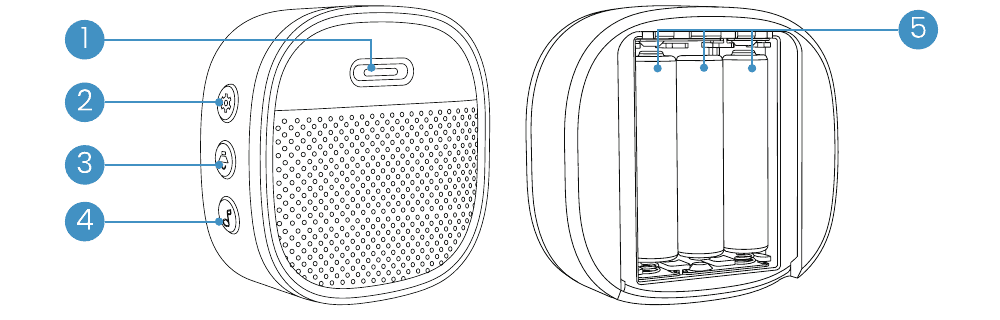

3. Meet the chime
| # | Component | # | Component |
|---|---|---|---|
| 1 | LED Indicator | 2 | Setting |
| 3 | Volume Control | 4 | Select Ringtone |
| 5 | AAA Batteries |
4. Charge your doorbell
| LED status | Indication |
|---|---|
| Solid red | Battery charging |
| Solid blue | Fully charged |
Compatible charger (not included): USB compatible mobile phone charger (DC 5V 1A~2A).
Battery Life: 1-2 months. Under laboratory environments, the wireless doorbell works 2 months with 20 triggers a day.
Tips: Battery life depends on temperature, PIR trigger frequency and battery aging factors.
5. App download
Search "ieGeek Cam" in the App Store or scan the QR code in the manual to download the app (also supports the "CloudEdge" app).
Please select your region and use your email address to register or log in to the app.
6. Set up doorbell
6.1. Install Micro SD Card (Not included)
Use the included unlocking pin tool to insert into the small hole on the bottom.
Remove the doorbell from the bracket.
Insert the Micro SD card into the card slot on the left side of the doorbell.
Notes for Micro SD Card
- Please insert the Micro SD Card before powering on, otherwise the Micro SD card can not be detected.
- ieGeek doorbell supports Micro SD card up to 128GB.
- Requirement Condition: Class 10 reading and writing speed and FAT32 file format (formatted before use).
6.2. Connect the Doorbell to Wifi
Press the doorbell button to activate it, and you will see the LED indicator flashes red (once per second). If not, press and hold the reset button for 5 seconds to restore factory defaults.
Method 1: Bluetooth Set Up
On the Homepage, tap "Add" or "+" in the upper right corner, tap "Add Device".
If the Bluetooth of your cellphone doesn't turn on, the app will show a pop-up; please allow it to turn on Bluetooth.
After Bluetooth turns on, the app will automatically search for devices that are on and not bound. Select the device you want to connect in the search list.
Method 2: Scan the QR Code
On the Homepage, tap "Add" or "+" in the upper right corner, tap "Add Device".
Choose Smart Doorbell (2.4G Wifi) and follow the in-app instructions.
Tips:
- Please operate settings near your Wi-Fi router.
- Make sure your phone is connected to 2.4GHz Wi-Fi.
- Make sure the doorbell is turned on, and the LED indicator is flashing red. If not, press and hold RESET for 5 seconds.
- Make sure the Wi-Fi signal is good, and the Wi-Fi password is correct.
| LED status | Indication |
|---|---|
| Solid red | Device is abnormal |
| Flash red (once/sec) | Ready for Wi-Fi configuration |
| Flash red (twice/sec) | Connecting to Wi-Fi |
| Solid blue | Device is online |
| Flash blue (once/sec) | Live-viewing doorbell cam |
| Flash blue (twice/sec) | Firmware upgrading |
7. Pair with your indoor chime
When you receive the product, the chime and the doorbell are connected by default. If you find the chime is not connected to the doorbell, you can connect it manually as follows:
Click the SETTING button on the chime, and the chime will be in pairing mode for 20 seconds, with its red LED flashing.
Press the doorbell button to send a pairing signal, and your chime will sound to react, together with its blue LED flashing. Chime pairing succeeds.
8. Install Your doorbell
Select a location

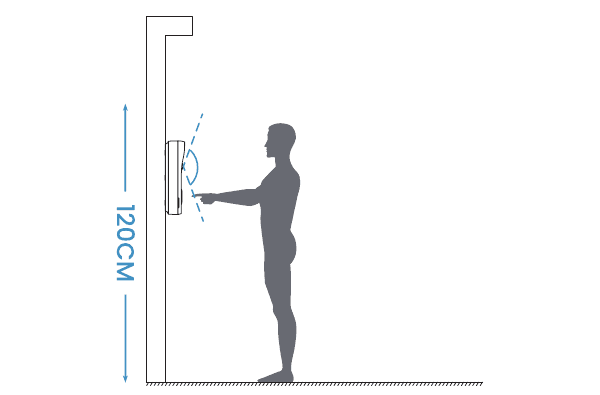

It is suggested to mount the doorbell at least 4 feet (120 cm) above the ground for optimal angle of view and best motion detection performance.
Mount your doorbell
Release the rear mount using the unlock pin.

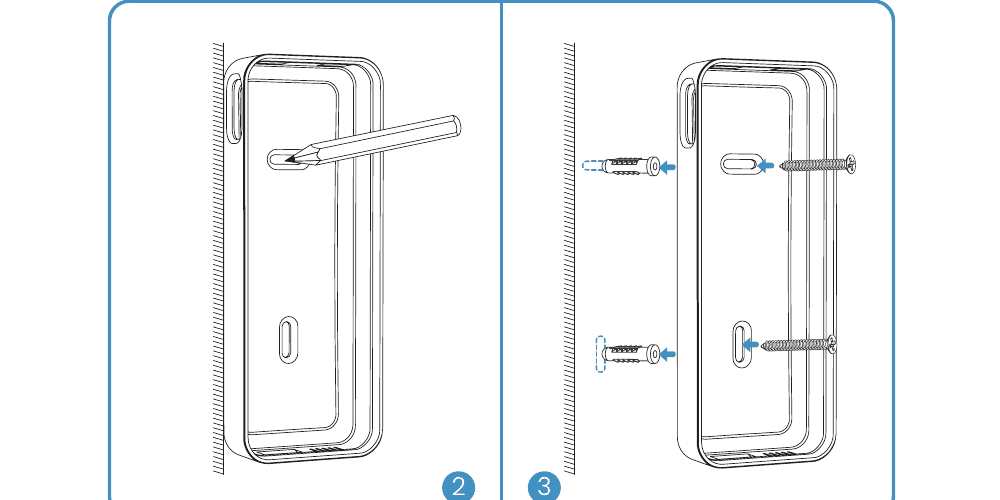

Mark the screw holes with the doorbell mount.
Mount the rear mount to your wall with screws and tools.
Adhesive tapes are optional to mount the doorbell on flat surfaces.
Attach the doorbell to its rear mount, and push the doorbell to lock up.
All set! Press the doorbell button to run a test.
If you encounter any questions, please contact us via email: [email protected].
9. Trouble Shooting
Q1: Is the video doorbell powered by battery?
A1: Yes, there is a Li-ion battery built-in. Thanks to the low power consumption technology, a full charge lasts for about 2 months in our lab test environment (Lab test condition: 10 events per day, 15 seconds video recording per event). When the temperature is too low, the power consumption rate will increase.
Q2: Does it support legacy hardwire power source?
A2: No, it doesn't.
Q3: Does the doorbell support 5GHZ WiFi?
A3: No, it only supports 2.4GHZ WiFi.
Q4: How many wireless chimes can be added to the doorbell?
A4: You can add several wireless chimes to work with your video doorbell.
Q5: Does it support customized Motion Detection Zones?
A5: Yes it does. You can customize the detection zone in the doorbell settings.
Q6: Does the doorbell support cloud storage?
A6: Your doorbell supports local video storage by Micro SD card. And you can also activate free cloud storage service in the App. Free cloud storage supports 6s video recording and the storage time is seven days.
Set path: Setting --- Cloud Storage Service --- Basic Cloud Storage --- Scroll to the bottom of the page --- Tap to on
Q7: How to install Micro SD card?
A7: Use the included pin to insert into the small hole at the bottom of the doorbell to remove the doorbell from the bracket. The SD card slot is on the left side. (The doorbell and the bracket are integrated when you receive it.)
Still need help? Visit the Doorbell FAQs or contact ieGeek customer support at [email protected].
